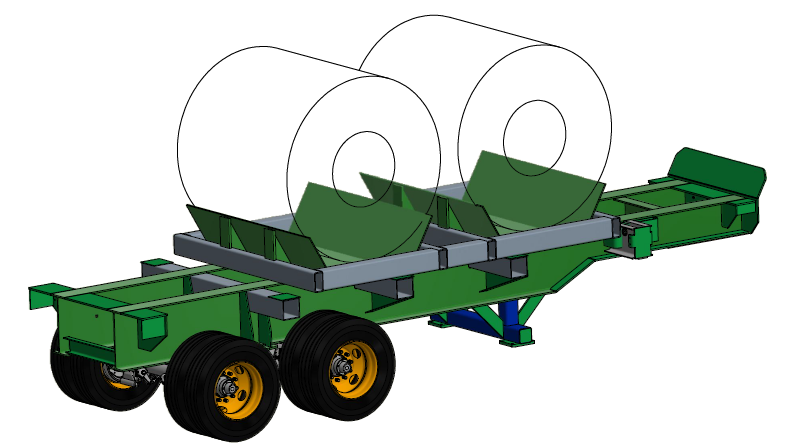

Steel Coil Trailer
Greenfield Products’ premium steel coil trailer is specifically engineered for the rigorous requirements of the primary metals industry. Designed with a reinforced low center of gravity frame, this trailer provides unmatched stability and security when hauling heavy-gauge steel coils.
Greenfields’ steel coil carts feature a heavy duty frame designed to withstand severe use commonly associated with steel applications. The suspension and axles used have a capacity of 70,000 lbs.
Greenfield Products engineers in accordance with appropriate ASME (American Society of Mechanical Engineers) and AISC Manual of Steel Construction Allowable Stress Design. 9th Edition. (American Institute of Steel Construction).
All manufacturing prints are reviewed by employed P.E. (Professional Engineer).
Capacity
- Greenfield steel coil cart frames are designed with a capacity of 50 ST/100,000 lbs. distributed over the length of the frame
- Designed for quantity 10 – 50”OD coils weighing 7,500 LBS EACH – 75,000 LBS total
Overall Dimensions (Nominal)
- Tare Weight: 25,500 LBS (plus wheels)
- Length: 46’-5” (557-1/2 in.)
- Width: 9’ (108 in.)
- Height:
- 40” – King Pin
- 53-1/4” – Main Deck
- Main Beam
- 38” nominal beam spacing on center
- W24x68 I-Beam
General Construction
- Steel
- ASTM 572-50 or equivalent.
- Dunnage Tubes
- 8”x 8” x 3/8” wall.
